DELTA DISC SANDER ANGLE GAUGE

DELTA 12" DISC SANDER ANGLE GAGE / WORKTABLE TILT SCALE

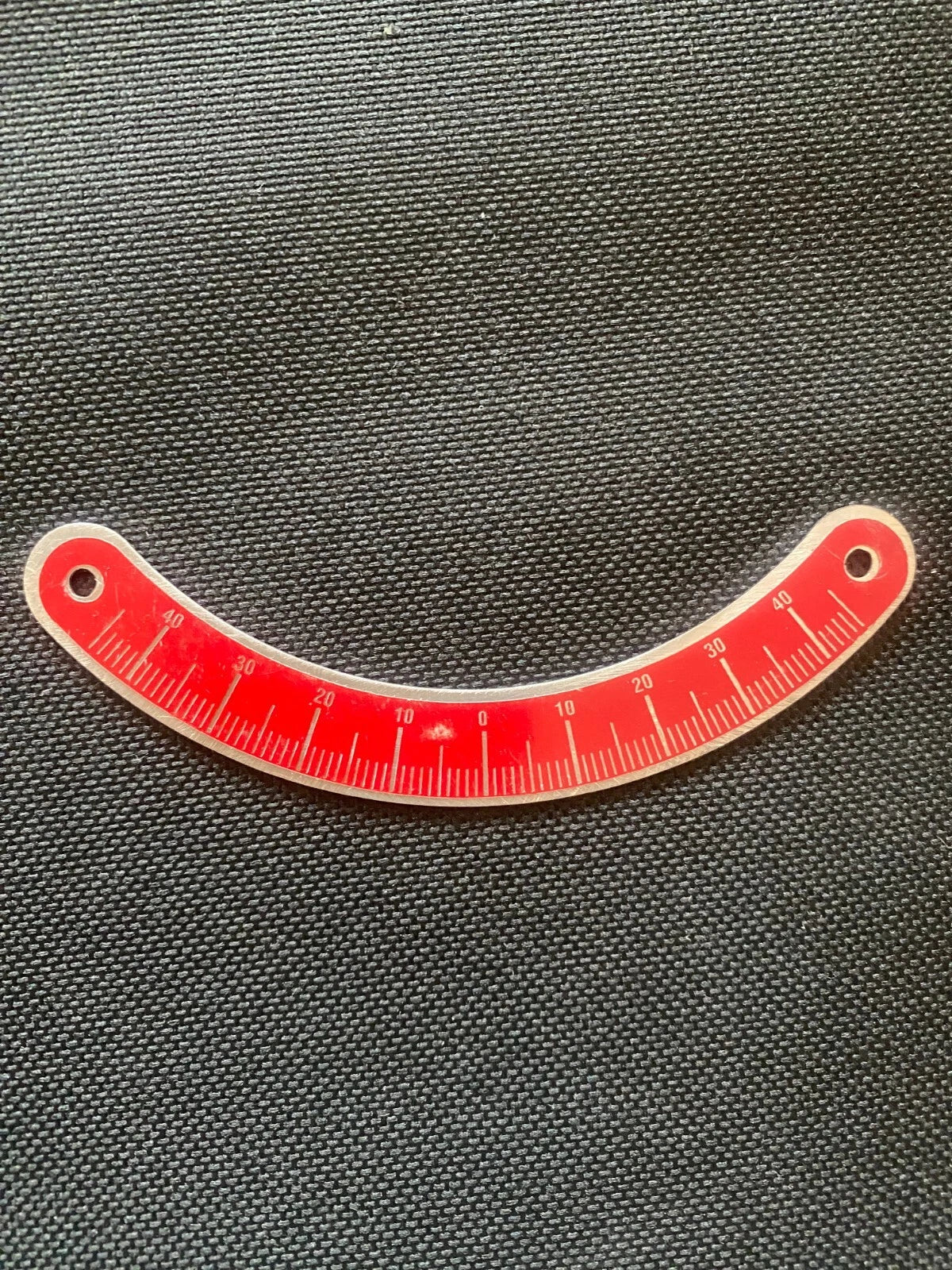

This is a new replacement angle gage plate for the worktable on a vintage Delta 12" disc sander.

The original angle gage—also called the worktable tilt scale—was made from thin aluminum. After decades of use, these plates are often dented, scratched, painted over, damaged during removal, or missing entirely.

Our newly manufactured replacement is more durable than the original and has been carefully recreated using the dimensions and artwork from an original Delta plate.

Product Features

• Manufactured from 0.030-inch-thick 304 stainless steel
• Laser-cut for clean, accurate edges
• Carefully deburred and brush-finished
• Finished with a high-quality, bright-red vinyl scale
• Mounting holes accurately positioned to match the original plate
• Uses the existing mounting-hole locations on the trunnion rocker plate
• Nominal dimensions: 1/2" x 3.75"

Each plate is individually bagged and shipped in a protective envelope with tracking.

Removing the Original Plate

Removing the original plate can be difficult because Delta installed it with drive rivets. The thin aluminum plate was frequently damaged while attempting to remove these rivets.

We use a small chisel to loosen each rivet. Carefully tap around the base of each rivet from all four sides until it becomes loose enough to remove.

Because a replacement plate is now available, there is less concern about damaging the original plate during removal.

Installing the New Plate

Install the replacement plate after the machine has been painted and the restoration work is complete.

The new plate can be installed using either:

• OEM-style drive rivets, or
• Stainless-steel pan-head screws, as used in our restoration work

For screw installation, drill the original rivet holes with a No. 38 drill bit, then tap the holes for 5-40 pan-head screws.

We prefer stainless-steel screws because they provide a secure installation while allowing the plate to be removed again in the future. Original-style drive rivets are designed for permanent, one-time installation.
